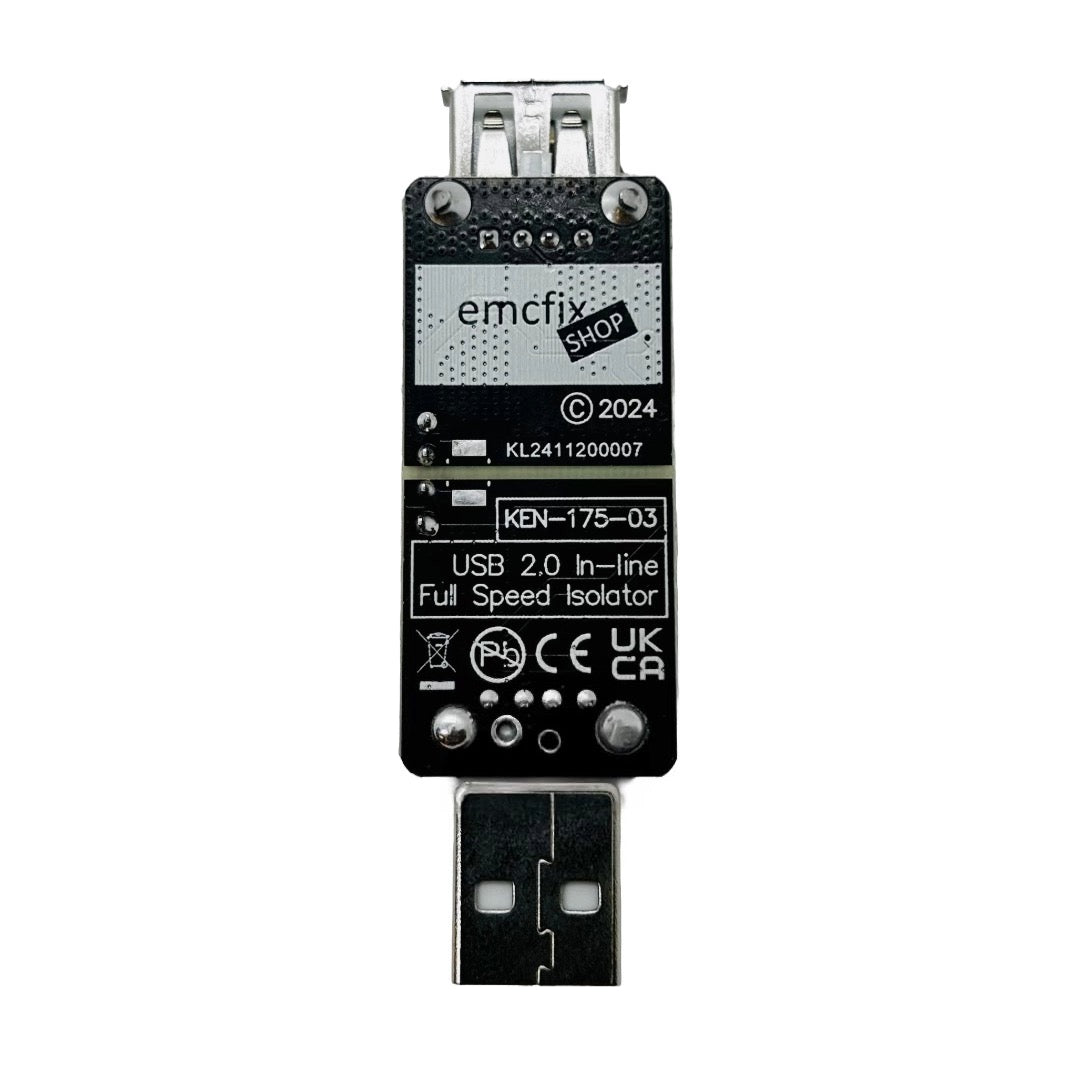

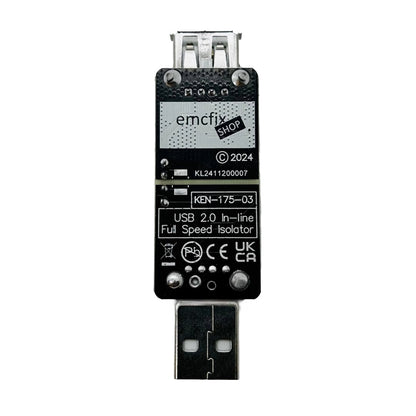

USB Signal and Power Isolator — 12 Mb/s Full Speed
USB Signal and Power Isolator — 12 Mb/s Full Speed
Couldn't load pickup availability
Need help choosing or buying larger quantities? Ask an EMC engineer
We aim to reply within 24 hours of receiving your enquiry.
Product details
Investigate ground-loop noise in compatible USB instruments and control systems.
Connections and selection
- For devices operating at 12 Mb/s full speed.
- Compact USB Type-A plug-to-socket format.
- Choose low-power peripherals with a demand no greater than 200 mA; account for startup demand.
- USB-powered signal and power isolation.
- 480 Mb/s high-speed and USB 3.x transfer modes are not supported.
USB port shape or the label USB 2.0 is not enough to establish compatibility. Check the actual peripheral mode, current demand and application. Audio compatibility depends on the specific device and stream requirements.

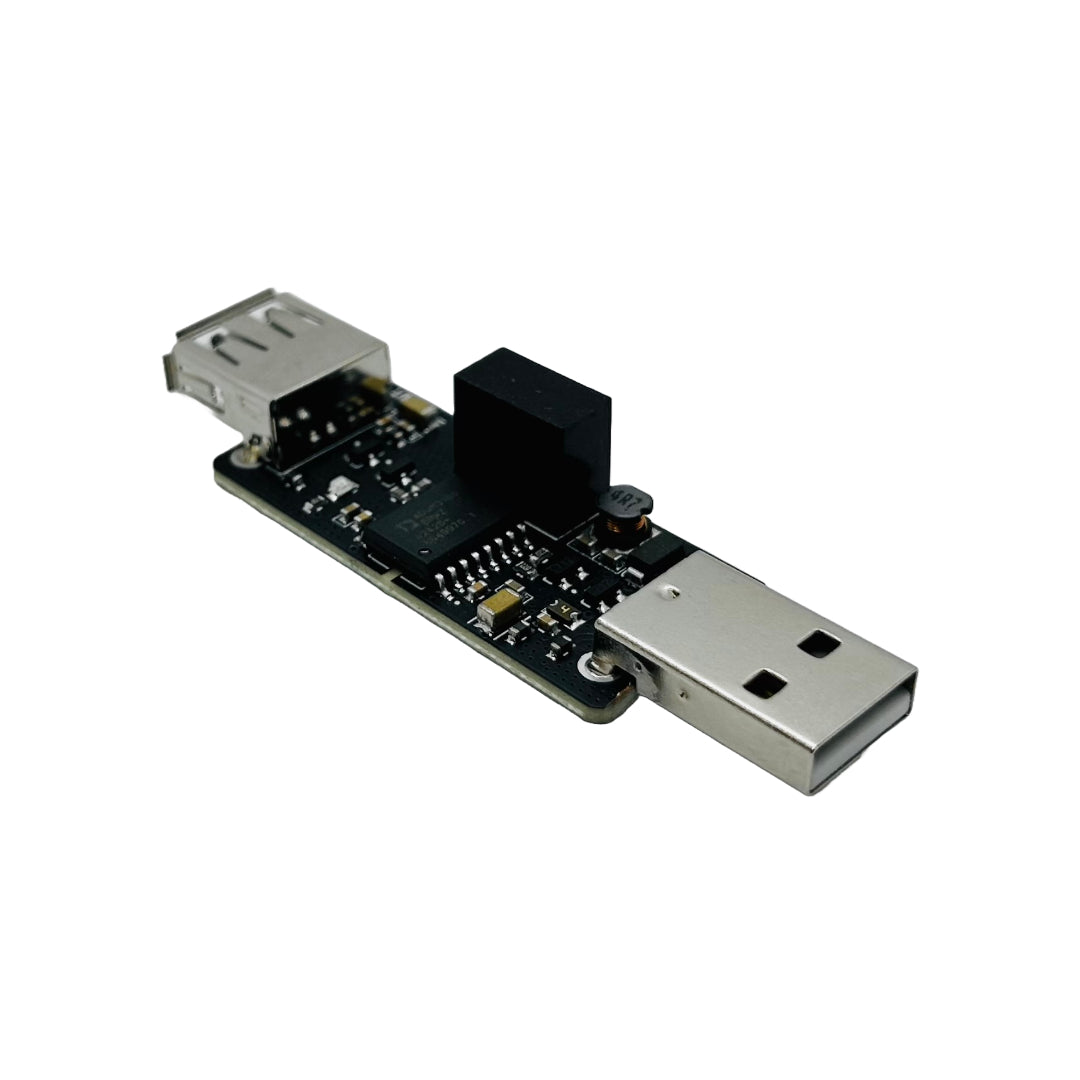

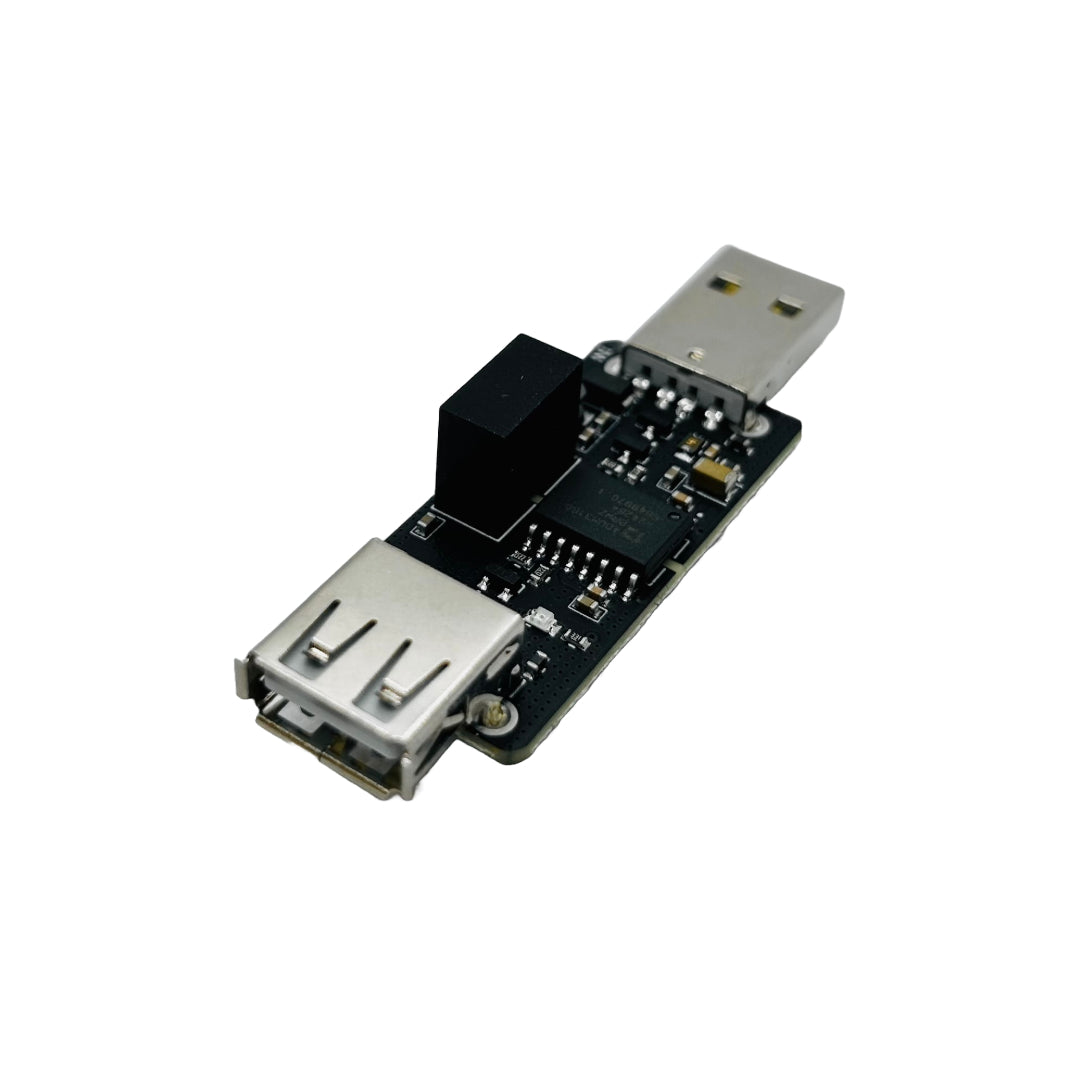

The sleeved PCB plugs directly into a Type-A connection. For a 1.5 Mb/s low-speed device, use the selectable low/full-speed isolator.
Use for functional isolation and noise investigation. The product is not offered as a rated personnel-protection barrier.
Compare USB filters and isolators by connector, data mode and power requirement.
Questions about this product
Which devices is this model intended for?
Which devices is this model intended for?
Choose a device that communicates at 12 Mb/s USB full speed and whose current demand, including startup, stays within 200 mA.
Will it work with a low-speed mouse or keyboard?
Will it work with a low-speed mouse or keyboard?
This model is full-speed only. If your device uses 1.5 Mb/s low speed, choose the selectable low/full-speed isolator and set it to match the device. Check the actual USB mode; not all mice or keyboards use the same speed.
Does USB 2.0 mean 480 Mb/s is supported?
Does USB 2.0 mean 480 Mb/s is supported?
No. USB 2.0 includes several speed modes. This model isolates 12 Mb/s full-speed signals only; it does not support 480 Mb/s high-speed USB or USB 3.x transfer modes.
Can you help with larger quantities or product selection?
Can you help with larger quantities or product selection?
Yes. Contact us with the product, quantity and intended application. We can discuss suitability and prepare a quotation for your requirements.
