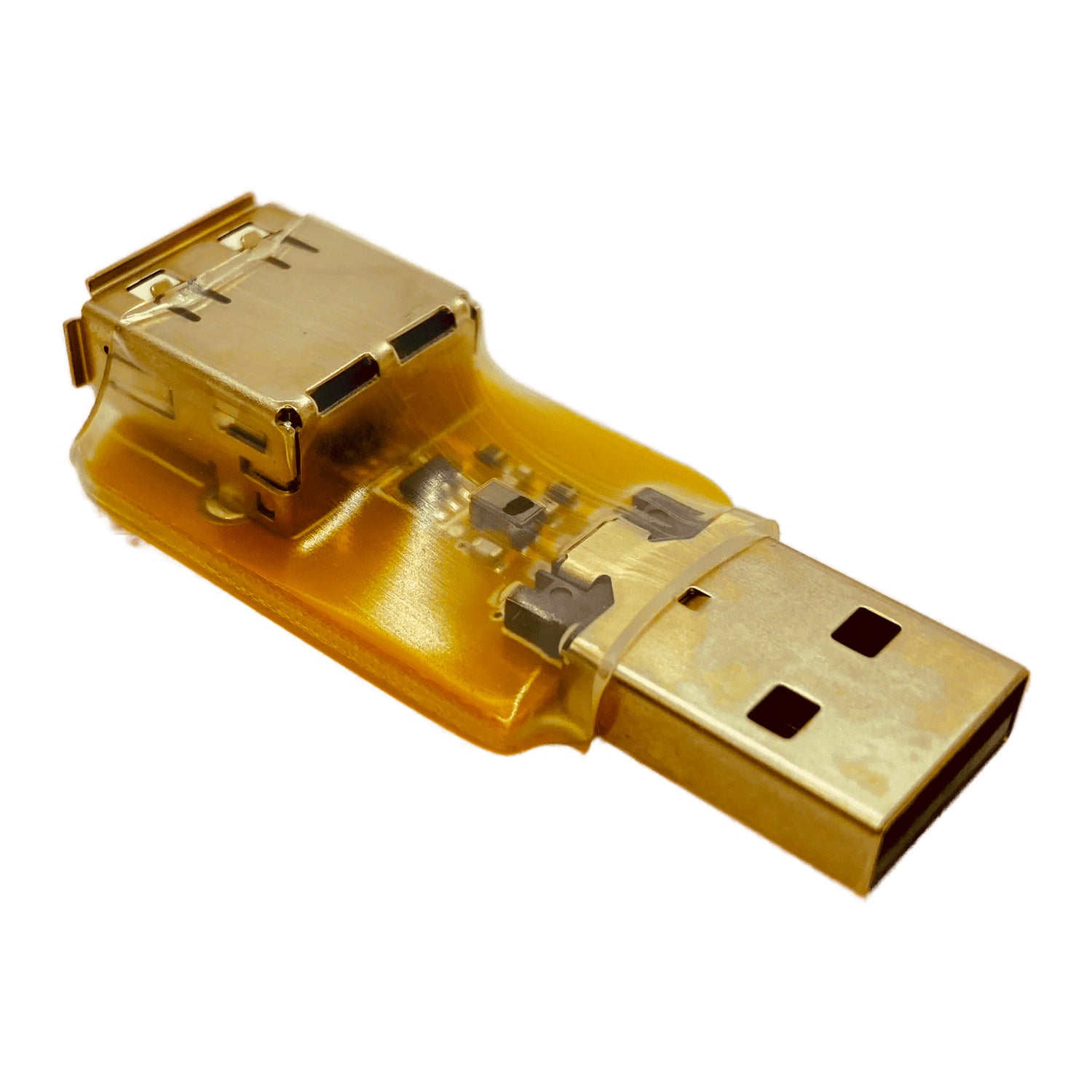

USB 2.0 In-line EMC Filter

USB 2.0 In-line EMC Filter

£40.00 GBP
£40.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The USB 2.0 In-line EMC Filter is a plug-and-play filter designed to reduce electromagnetic noise emissions and improve signal integrity of USB 2.0 data signals.

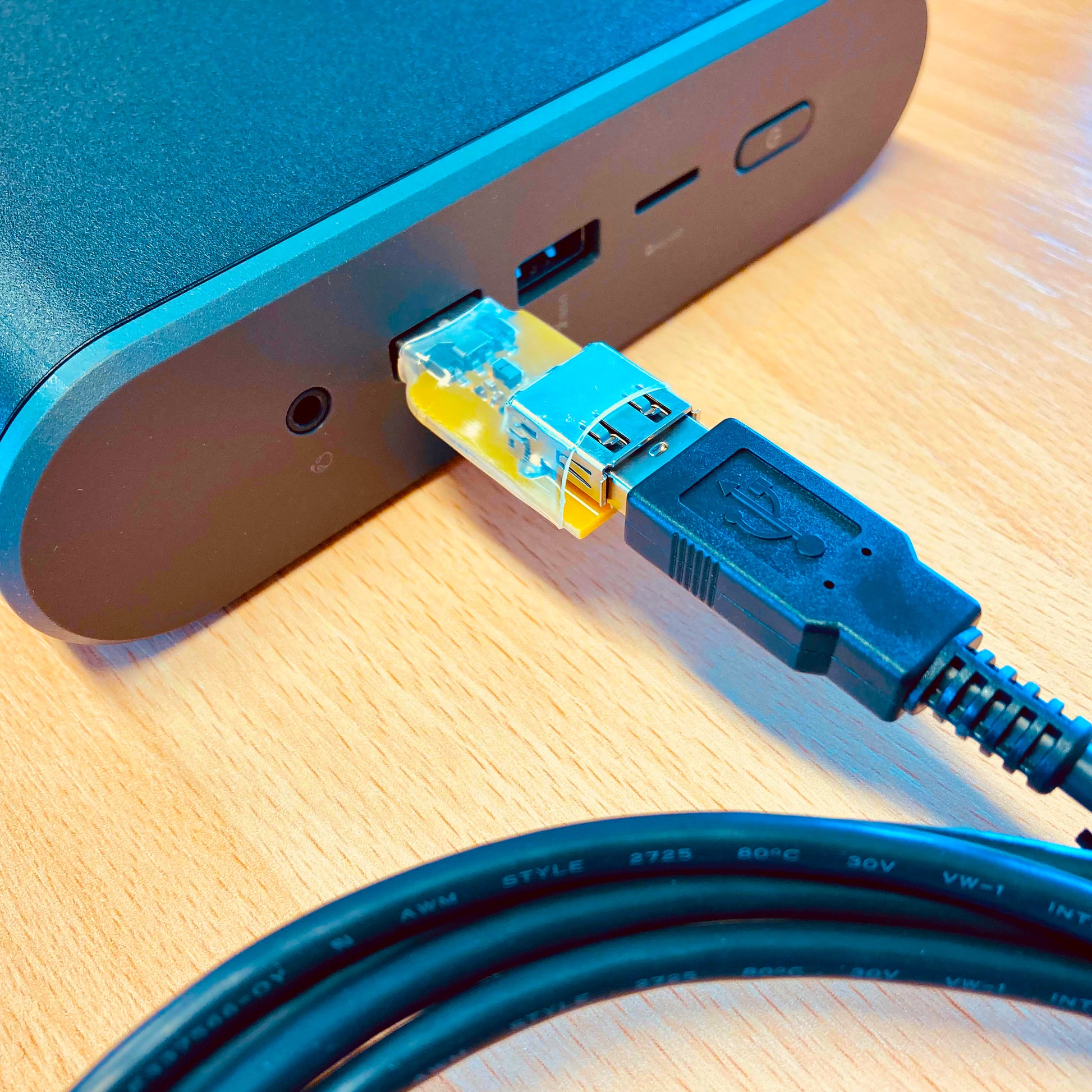

As well as offering EMC filtering, the filter also incorporates ESD protection and can easily be incorporated into existing systems using its standard USB Type A plug and socket connectors. The USB 2.0 In-line EMC Filter can provide an instant fix for any emissions or immunity issues on your USB lines and can easily be added to you products' BoM to fix your EMC issues without the hassle of having to redesign!

Features

  • Plug & play USB 2.0 EMC filter
  • Compatible with USB 2.0 signals
  • EMC filtering and ESD protection
  • 0.5A current rating
  • 0°C to +70°C operating temperature range

For more information please see the datasheet.

View full details

Frequently Asked Questions

Where do I place a filter?

The filter effectiveness is greatly affected by the location of the filter.

All the emcfixshop filters are designed to be placed in-line so no design modifications are required. The effectiveness of the filter is greatly affected by the location of the filter so it is recommended that the filter is placed as close as possible to the product.

Do you offer bulk pricing on this part?

Yes

The pricing on this page is for quantities up to 10 off. If you wish to purchase in larger quantities we would be happy to provide you with a quote. Please get in touch.

How do I know which USB type I have?

We have a guide for our USB filters located in the guides section of the website. This provides a handy table to show the difference between the USB protocols.

What is the difference between the mini USB filters and the standard size USB filters?

Both the mini USB filters and the equivalent standard USB filters offer exactly the same filtering. As the name suggest, the mini filters incorporate this filtering on a much smaller footprint. So if space is an issue - make sure you choose the mini version!
