Snap Ferrite (7–8.5 mm) – Würth 74271132
Snap Ferrite (7–8.5 mm) – Würth 74271132
Couldn't load pickup availability
Need help choosing or buying larger quantities? Ask an EMC engineer
We aim to reply within 24 hours of receiving your enquiry.
Product details

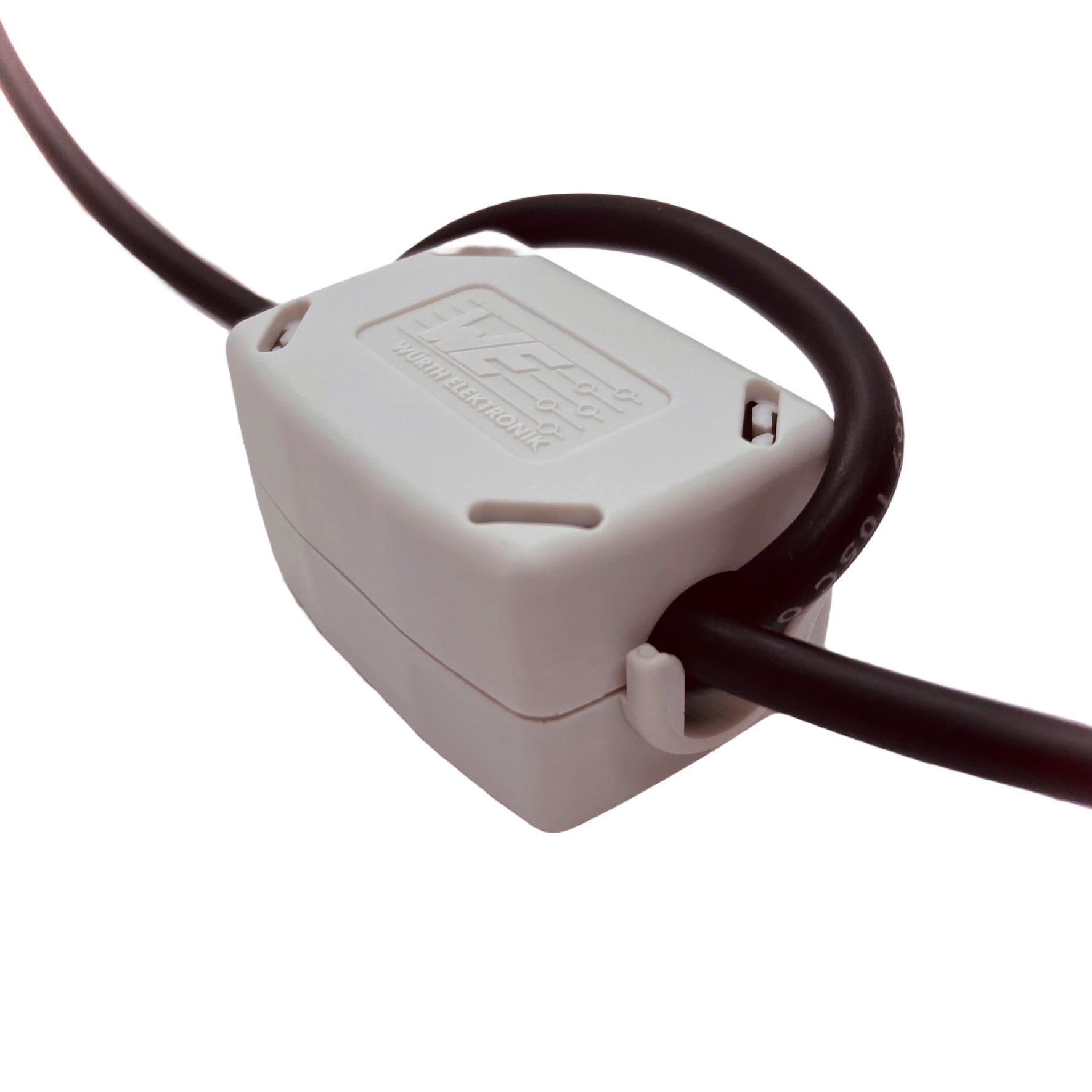

Würth Elektronik 74271132 is a WE-STAR-TEC split ferrite for cable noise suppression. The hinged housing fits around an existing cable.
Specifications
- Manufacturer part number: 74271132
- Series: WE-STAR-TEC

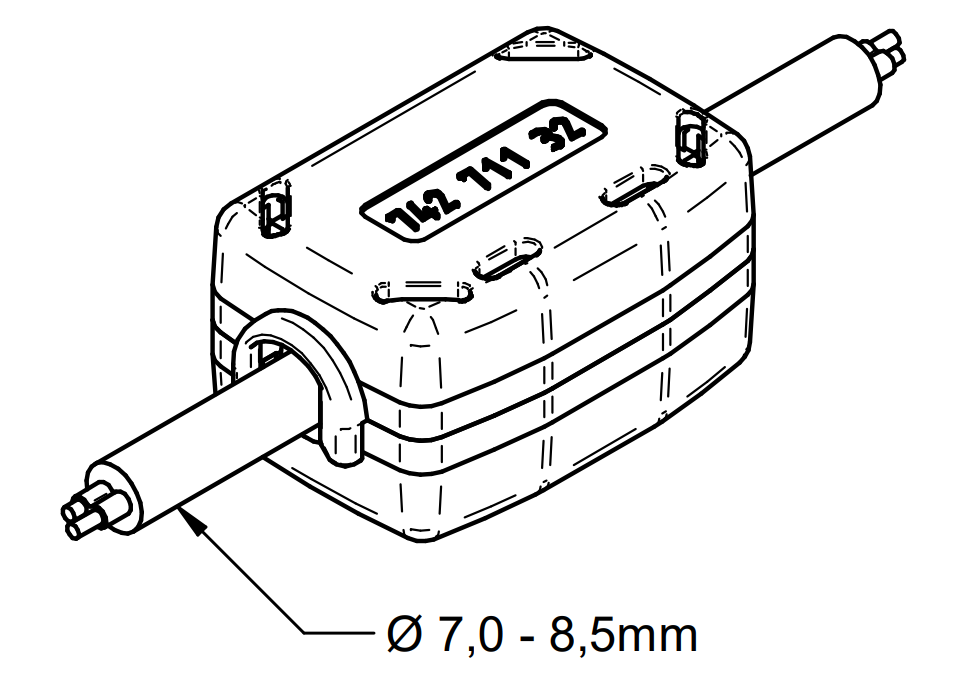

- Cable diameter: 7–8.5 mm
- Impedance with one turn: 235 Ω ±25% at 100 MHz
- Manufacturer impedance test cable: AWG26, 100 mm
- Reopens with Würth safety key 74271
Frequently Asked Questions
How does a ferrite work?
A ferrite adds impedance to unwanted high-frequency current on the conductor or cable passing through it. Part of that energy is dissipated as heat in the ferrite.
The impedance depends on the material, frequency and number of cable passes. Use the datasheet to select a starting point, then check the result on your equipment.
Do I need to buy the ferrite key separately?
No
Every one of our ferrites come with a ferrite safety key included as standard.
Is this ferrite available in a different colour?
Some ferrites are available in grey or black housings. Contact us with the part number if you need another colour, and we can confirm the available options.
Is this ferrite reusable?
Yes
The ferrite can be removed using the ferrite key supplied.
How many turns of wire should be used with this ferrite?
Start with the arrangement shown in the datasheet. Additional cable passes can increase impedance, but the effect varies with frequency and installation. Check the available aperture and cable bend radius, and compare results in your setup.
What happens to the ferrite if the operating temperature is exceeded?
Use the complete component within its specified operating-temperature range. The limit can depend on the magnetic material, housing and other construction details. Exceeding it can affect performance or damage the part.
Do you offer bulk pricing on this part?
For quantities above 10, please contact us for a quotation. Tell us the part, quantity and required delivery date so we can help.
