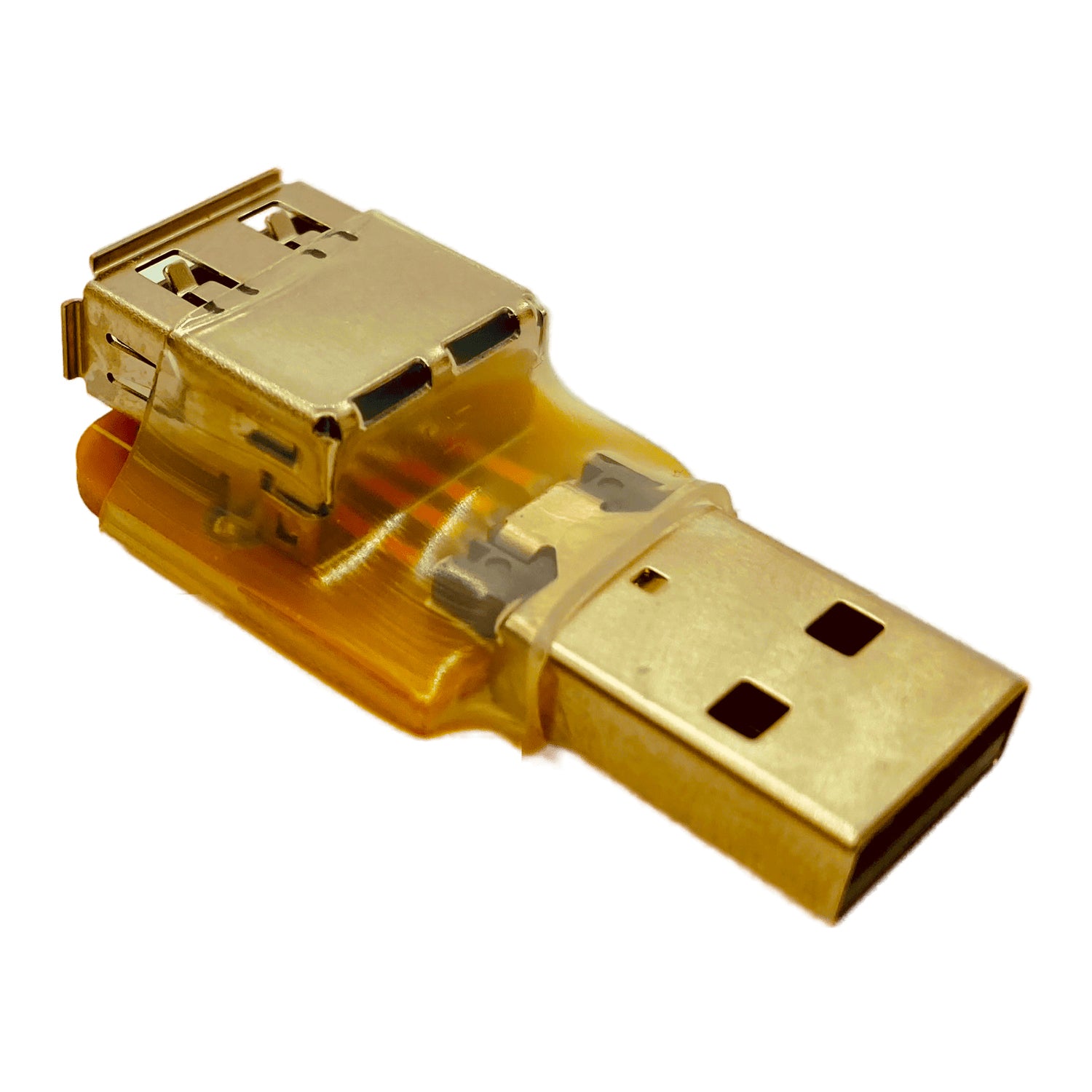

Mini USB 2.0 In-line EMC Filter
Mini USB 2.0 In-line EMC Filter
Couldn't load pickup availability
The Mini USB 2.0 In-line EMC Filter is a plug-and-play filter designed to reduce electromagnetic noise emissions and improve signal integrity of USB 2.0 data signals.
As well as offering EMC filtering, the filter also incorporates ESD protection and the extremely small footprint of the Mini USB 2.0 Filter makes it perfect for almost any application!

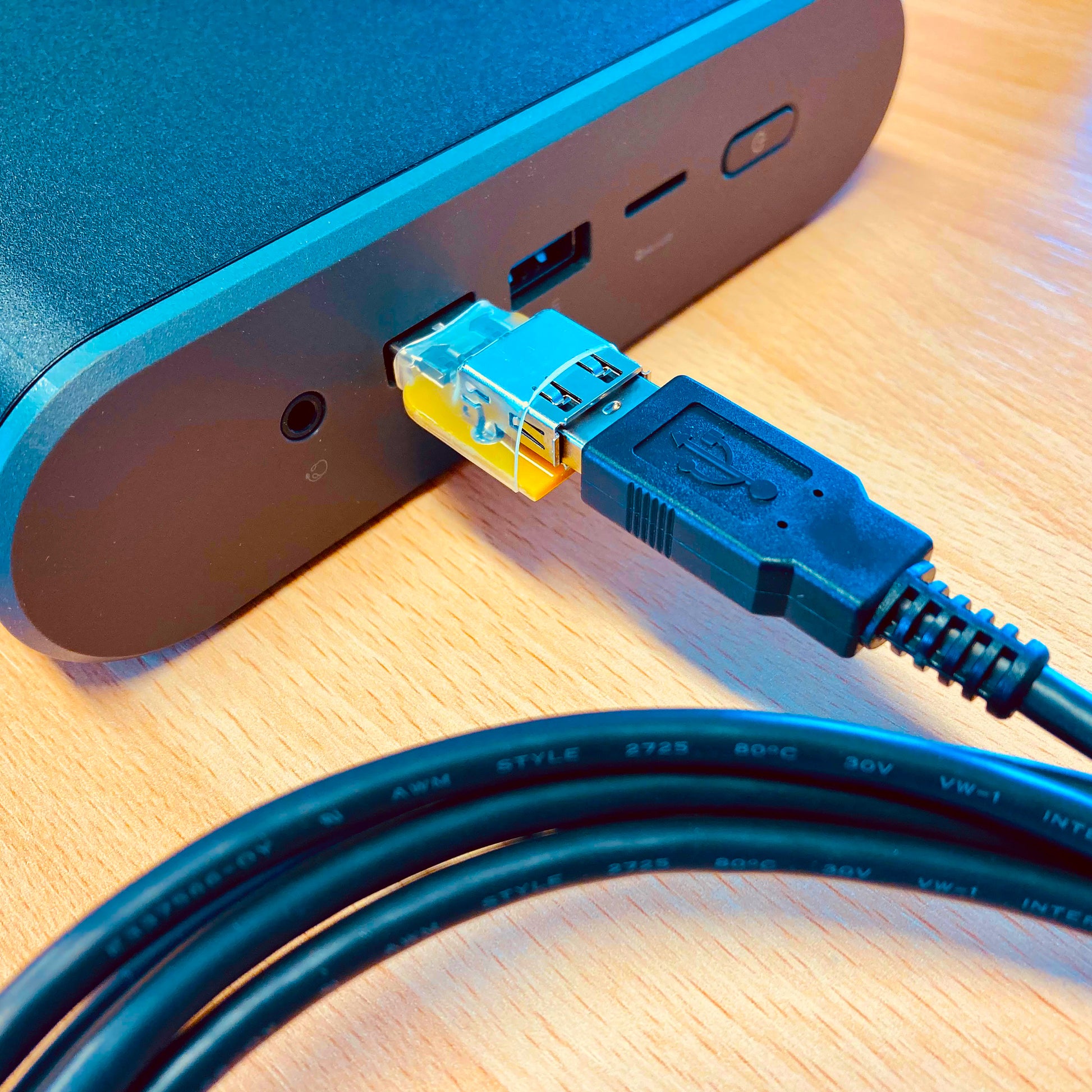

The filter can easily be incorporated into existing systems using its standard USB Type A plug and socket connectors and can provide an instant fix for any emissions or immunity issues on your USB lines. The Mini USB 2.0 In-line EMC Filter can easily be added to you products' BoM to fix your EMC issues without the hassle of having to redesign!
Features
- Plug & play USB 2.0 EMC filter
- Compatible with USB 2.0 signals
- Extremely small solution
- EMC filtering and ESD protection
- 0.5A current rating
- 0°C to +70°C operating temperature range
For more information please see the datasheet.
Frequently Asked Questions
Where do I place a filter?
The filter effectiveness is greatly affected by the location of the filter.
All the emcfixshop filters are designed to be placed in-line so no design modifications are required. The effectiveness of the filter is greatly affected by the location of the filter so it is recommended that the filter is placed as close as possible to the product.
Do you offer bulk pricing on this part?
Yes
The pricing on this page is for quantities up to 10 off. If you wish to purchase in larger quantities we would be happy to provide you with a quote. Please get in touch.
