emcfix KIT – Noise and Shielding Investigation Kit
emcfix KIT – Noise and Shielding Investigation Kit
Couldn't load pickup availability
Need help choosing or buying larger quantities? Ask an EMC engineer
We aim to reply within 24 hours of receiving your enquiry.
Product details
Keep a useful selection of ferrites, shielding materials and circuit components together for your next noise investigation. The emcfix KIT helps you compare practical changes on a prototype, repair or development setup.

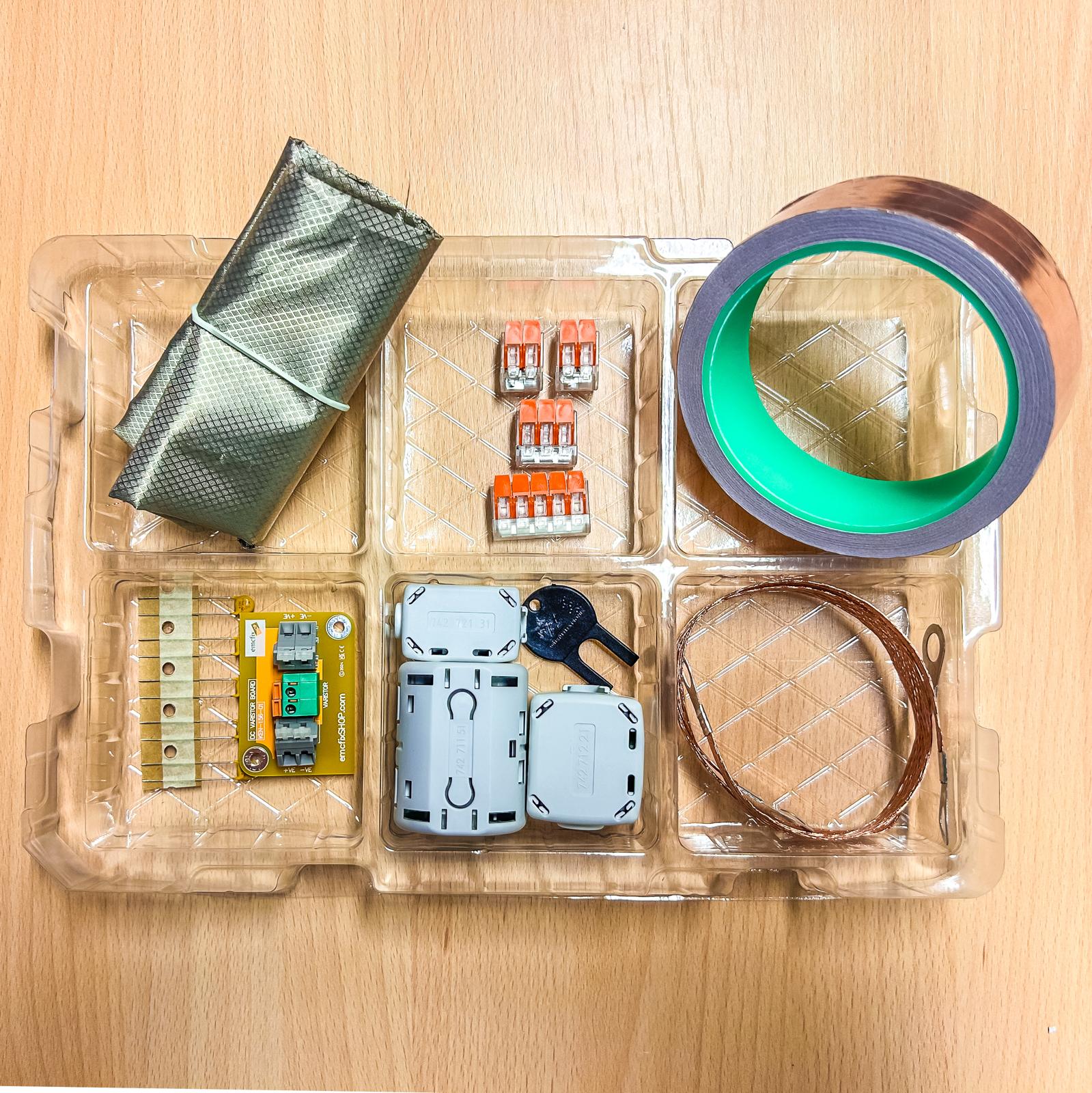

What’s included

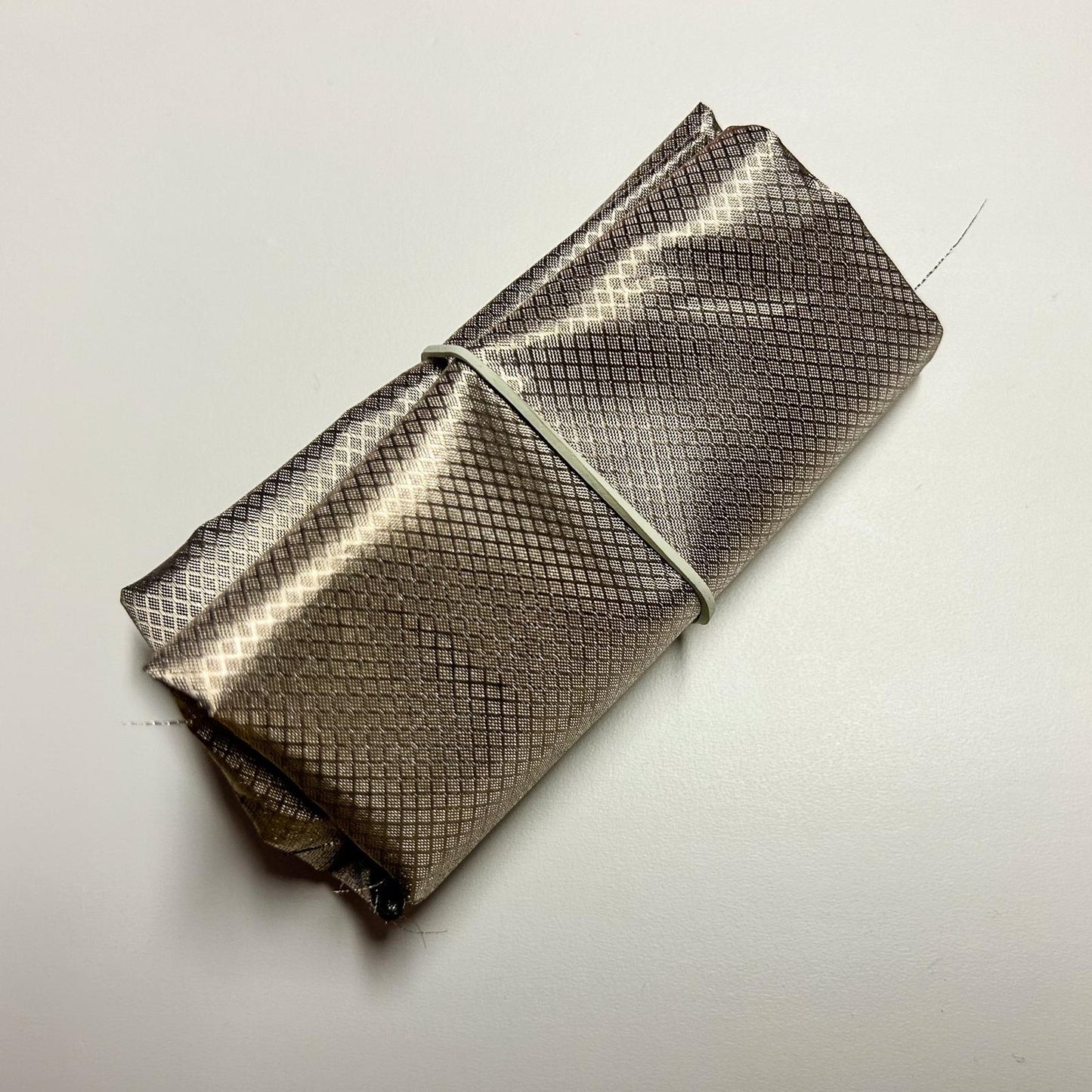

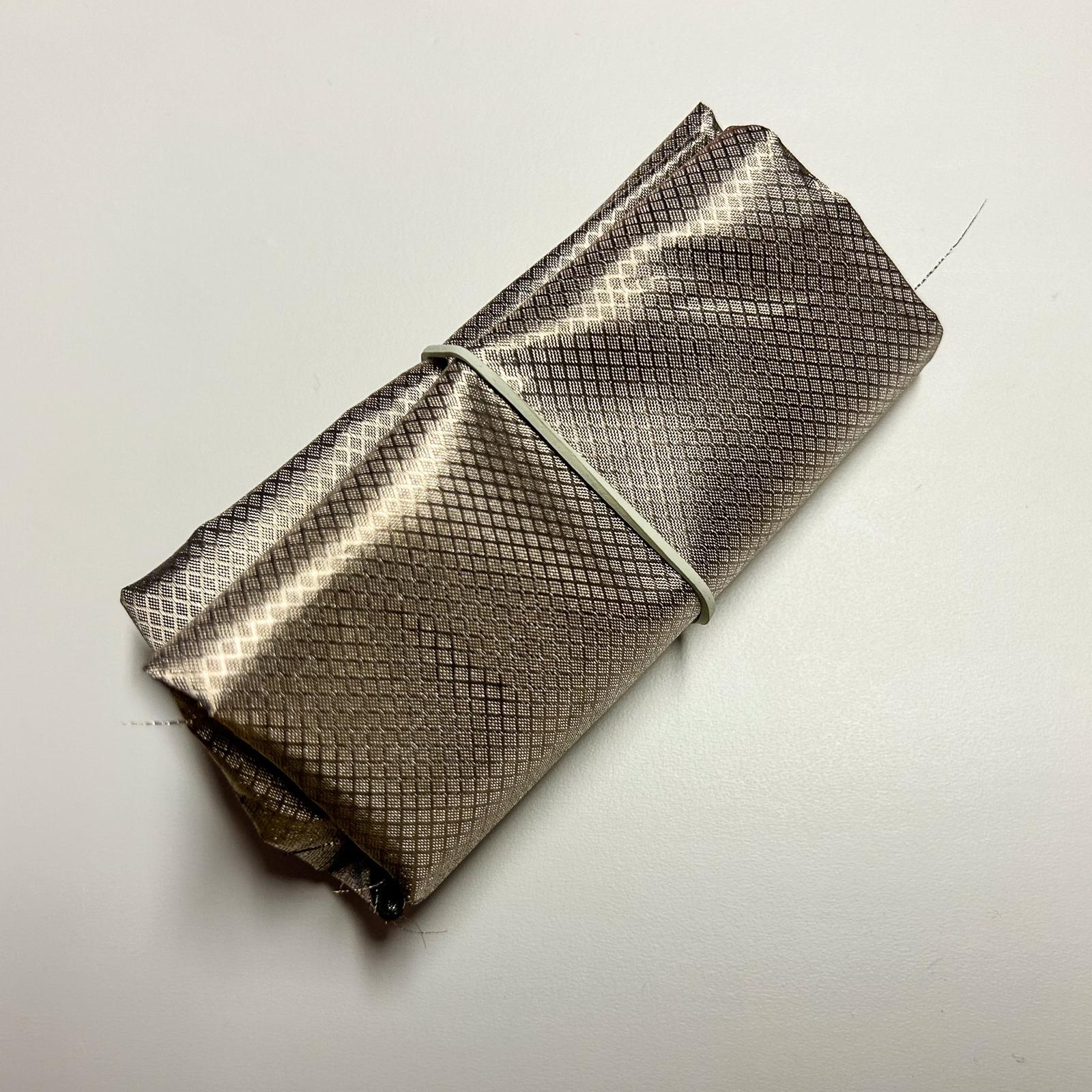

- 1 × conductive shielding fabric, 40 × 50 cm

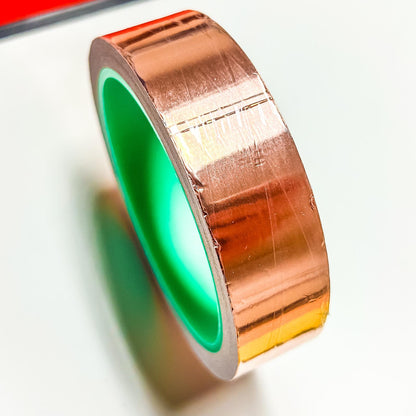

- 1 × copper tape roll, 25 mm × 10 m

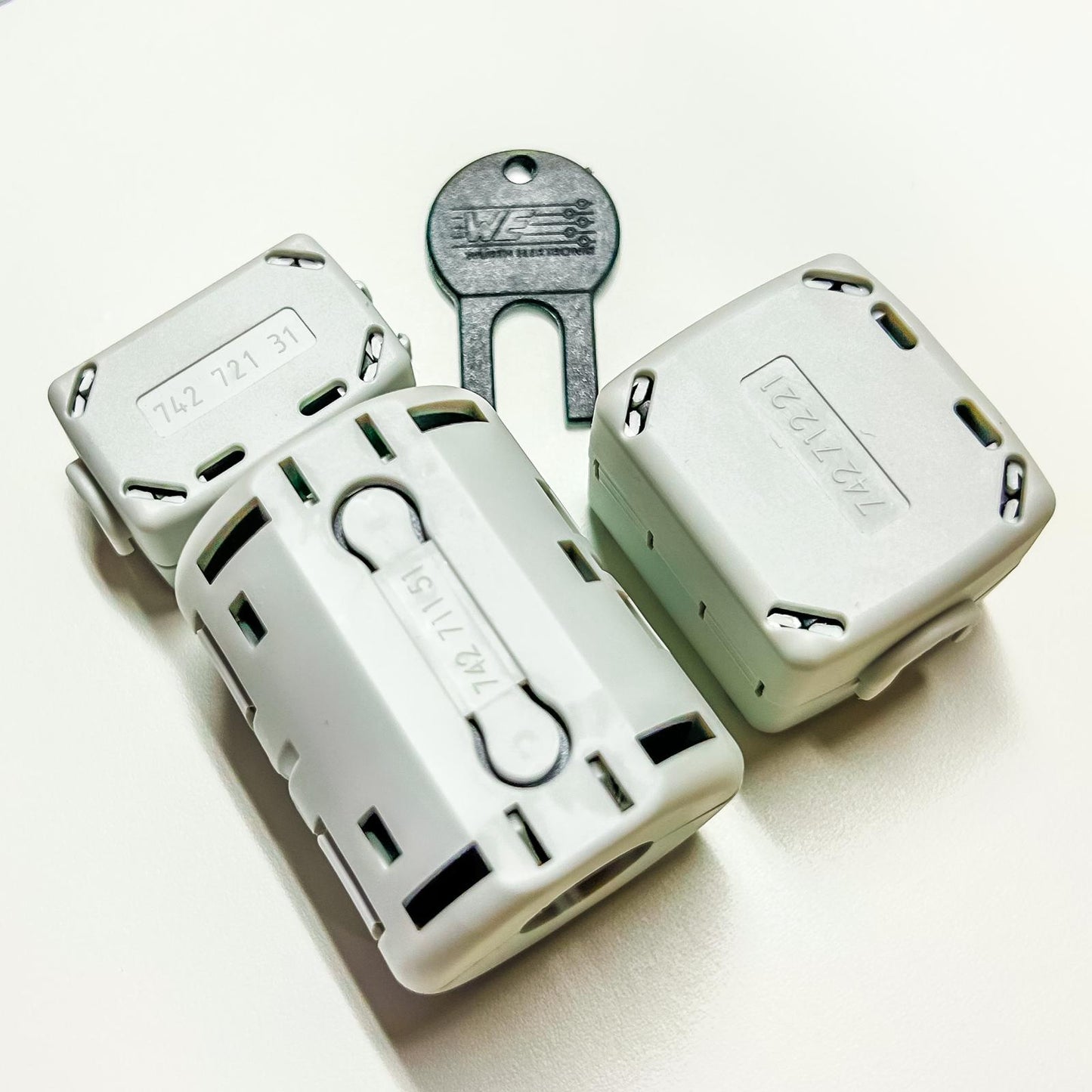

- 1 × stocked snap ferrite for cable-noise investigation
- 1 × Würth 74271221 snap ferrite for 8.5–10.5 mm cable
- 1 × Würth 74272131 low-frequency snap ferrite for 6–7.5 mm cable
- 1 × ferrite key

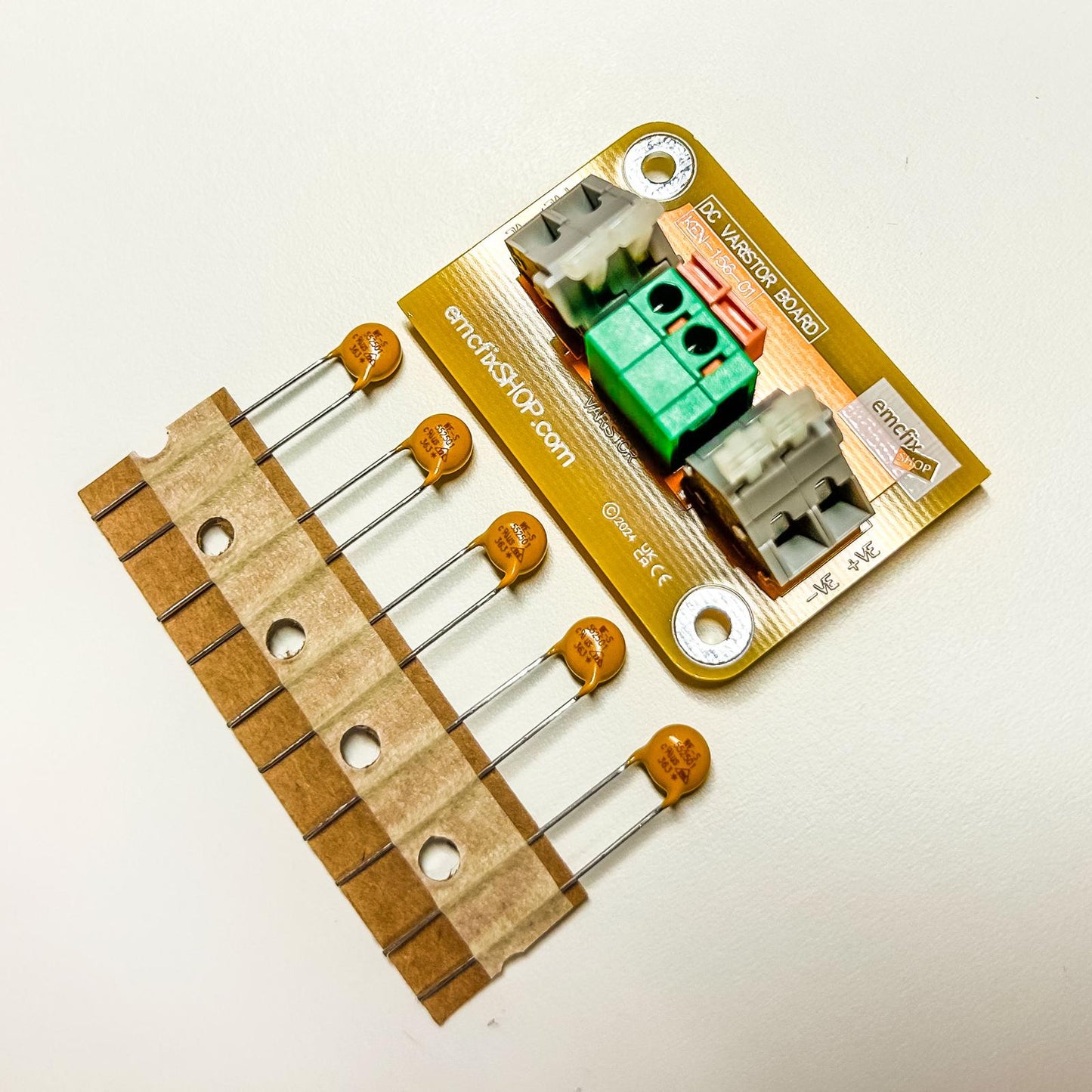

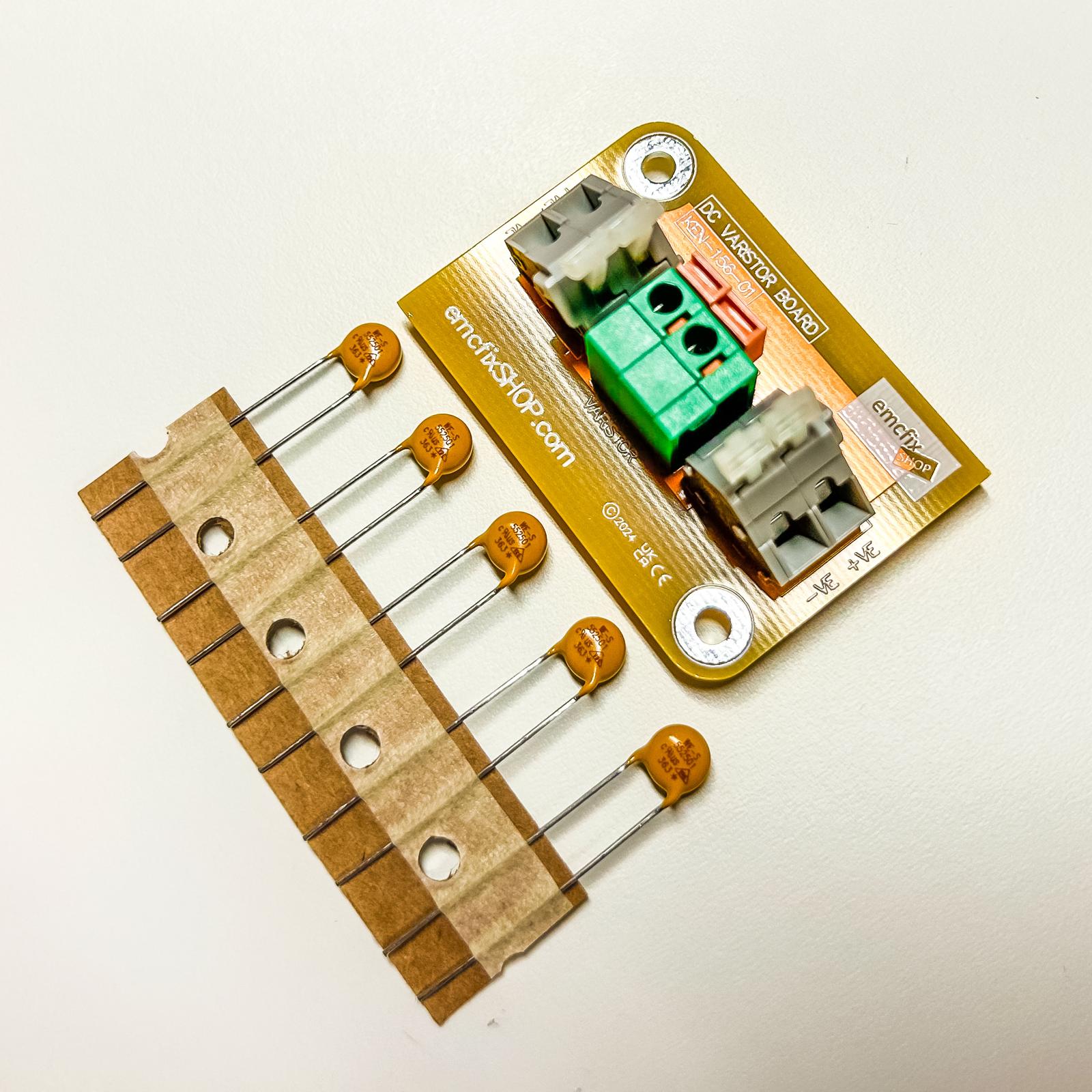

- 1 × emcfixSHOP DC component adapter board
- 5 × 24 V DC varistors, Würth 820552501

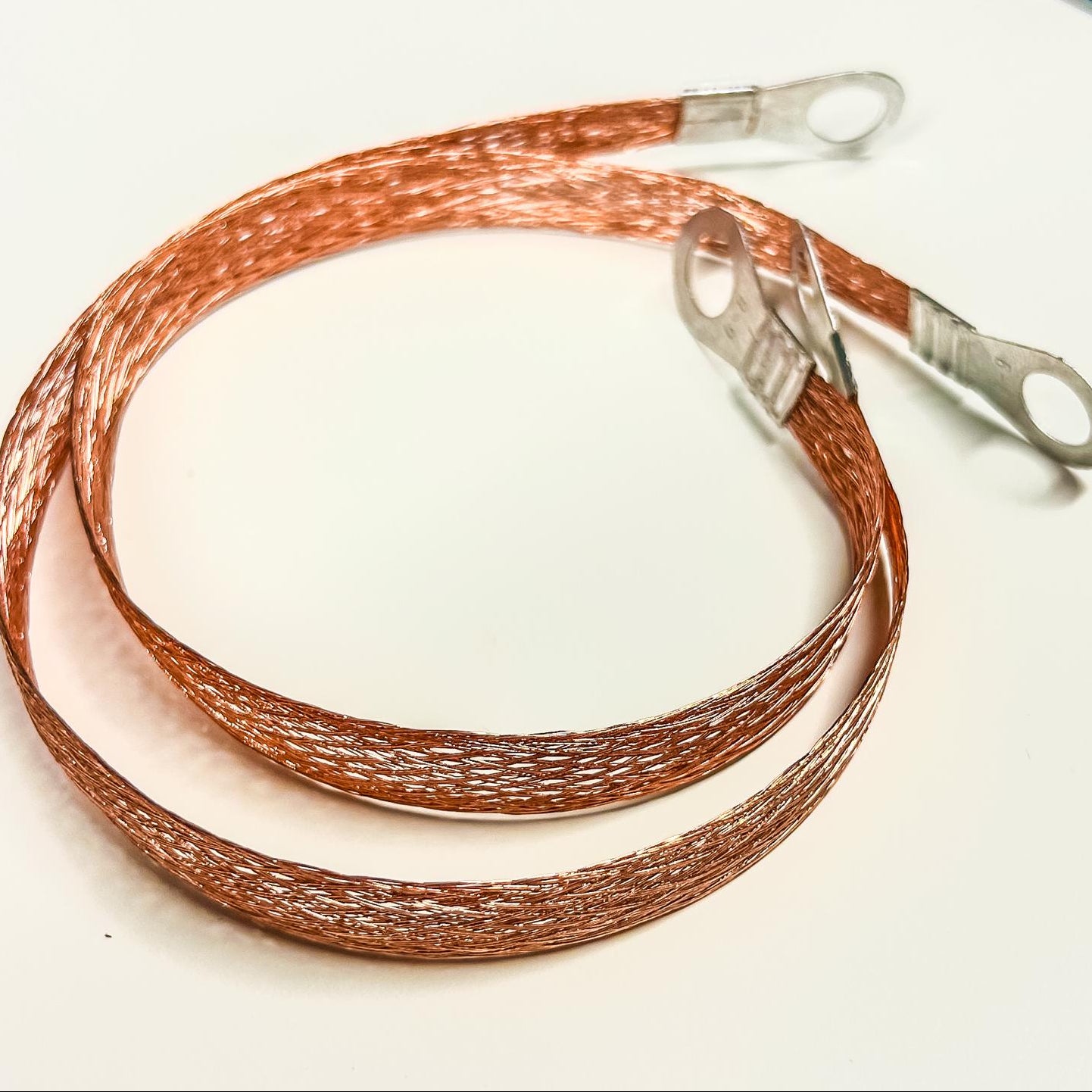

- 2 × copper bonding straps, 30 cm long

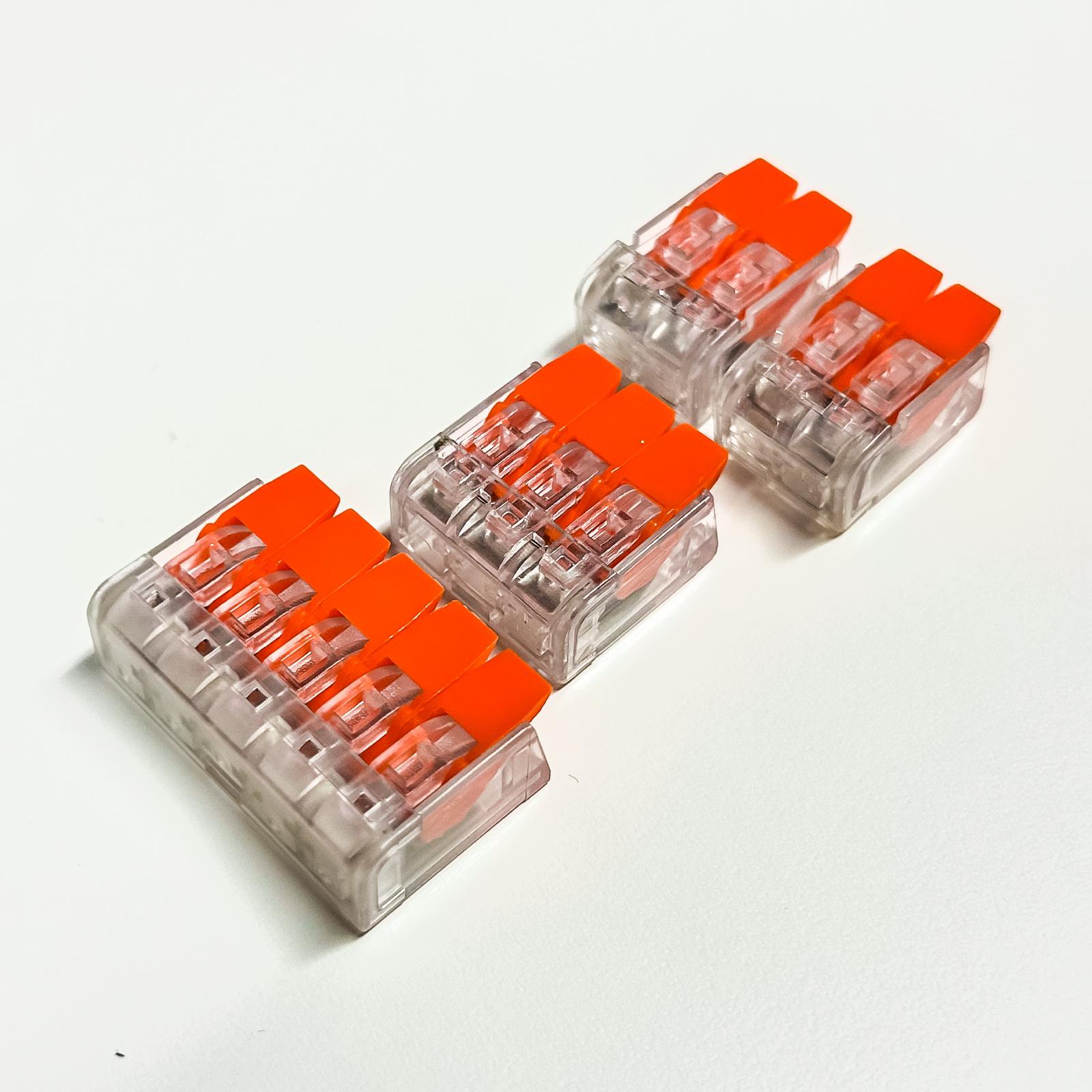

- 2 × two-way quick-connect terminals
- 1 × three-way quick-connect terminal
- 1 × five-way quick-connect terminal
Put the kit to work
Match each component to the cable, circuit and operating conditions. Try one change at a time and compare the result. Use the individual component information to plan your installation, or ask our engineers for a practical starting point.
Questions about this product
What is included in the emcfix KIT?
What is included in the emcfix KIT?
The current contents are listed in the product details above, including ferrites, shielding materials, adapter and connection parts. Review the list and individual component specifications before ordering.
How should I use the kit during investigation?
How should I use the kit during investigation?
Choose a component suited to the suspected noise path, make one controlled change at a time and compare results. The kit supports investigation; the right fix depends on your equipment and test results.
Can I order replacement parts separately?
Can I order replacement parts separately?
Many kit components are also available individually in the shop. Contact us if you need help identifying a replacement or selecting a different size or rating.
Can you help with larger quantities or product selection?
Can you help with larger quantities or product selection?
Yes. Contact us with the product, quantity and intended application. We can discuss suitability and prepare a quotation for your requirements.
