AC Suppression Component Evaluation Board – L/N/E
AC Suppression Component Evaluation Board – L/N/E
Couldn't load pickup availability
Need help choosing or buying larger quantities? Ask an EMC engineer
We aim to reply within 24 hours of receiving your enquiry.
Product details

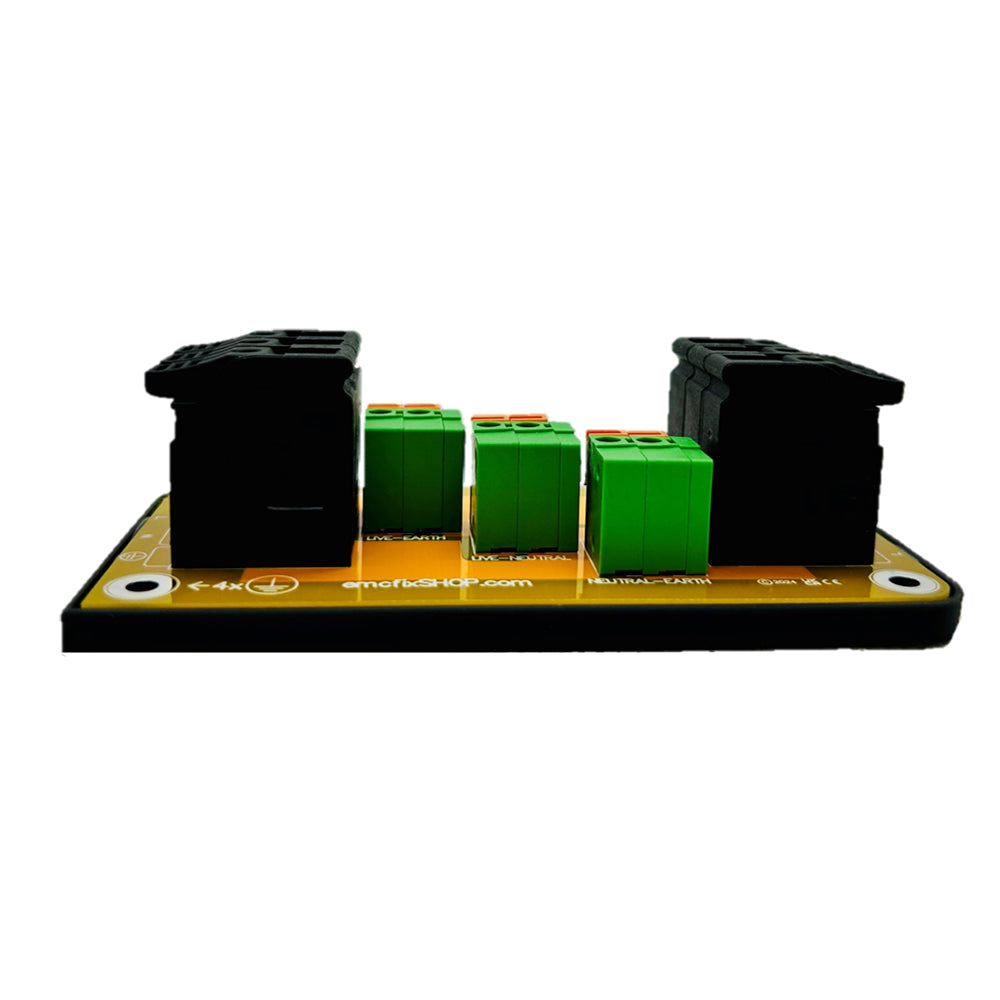

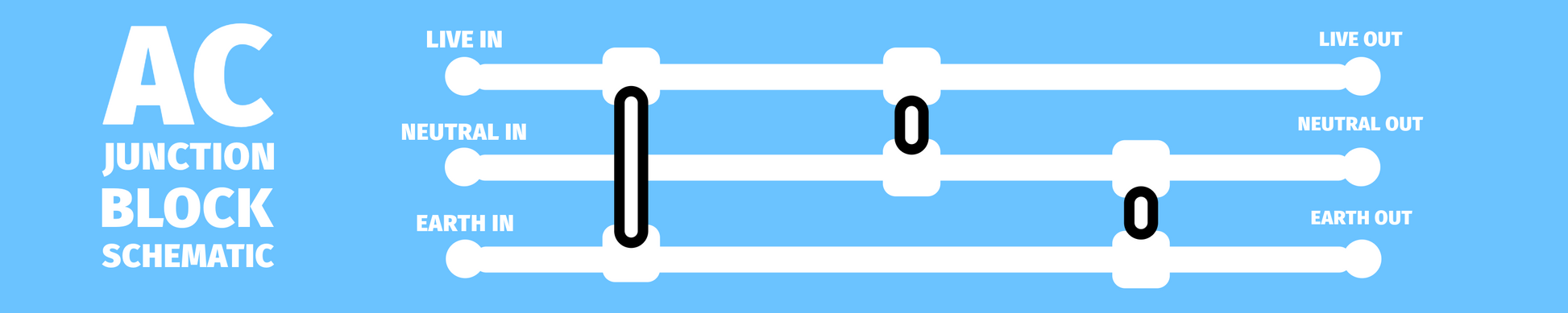

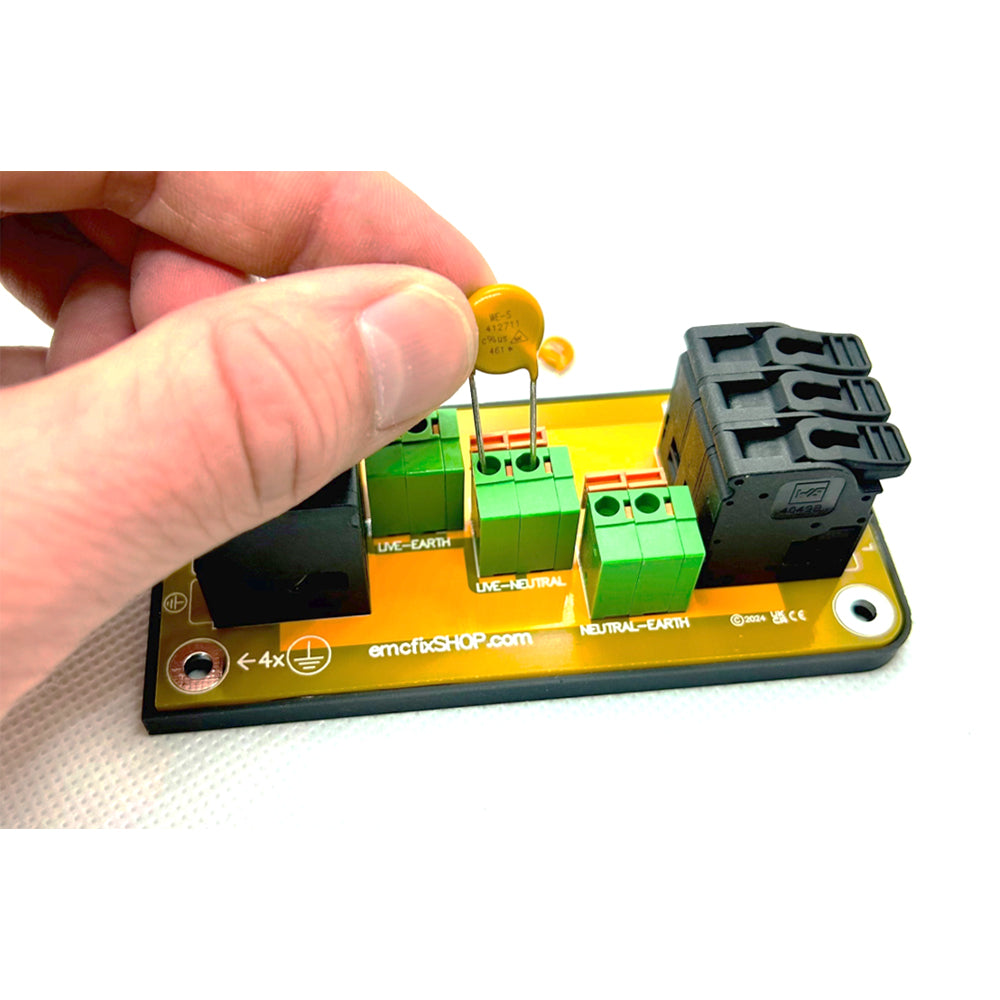

Compare suitable leaded suppression components without repeatedly soldering or redesigning a prototype PCB. Three component positions connect across line–neutral, line–earth and neutral–earth for controlled engineering evaluation.
At a glance
- Three parallel component positions

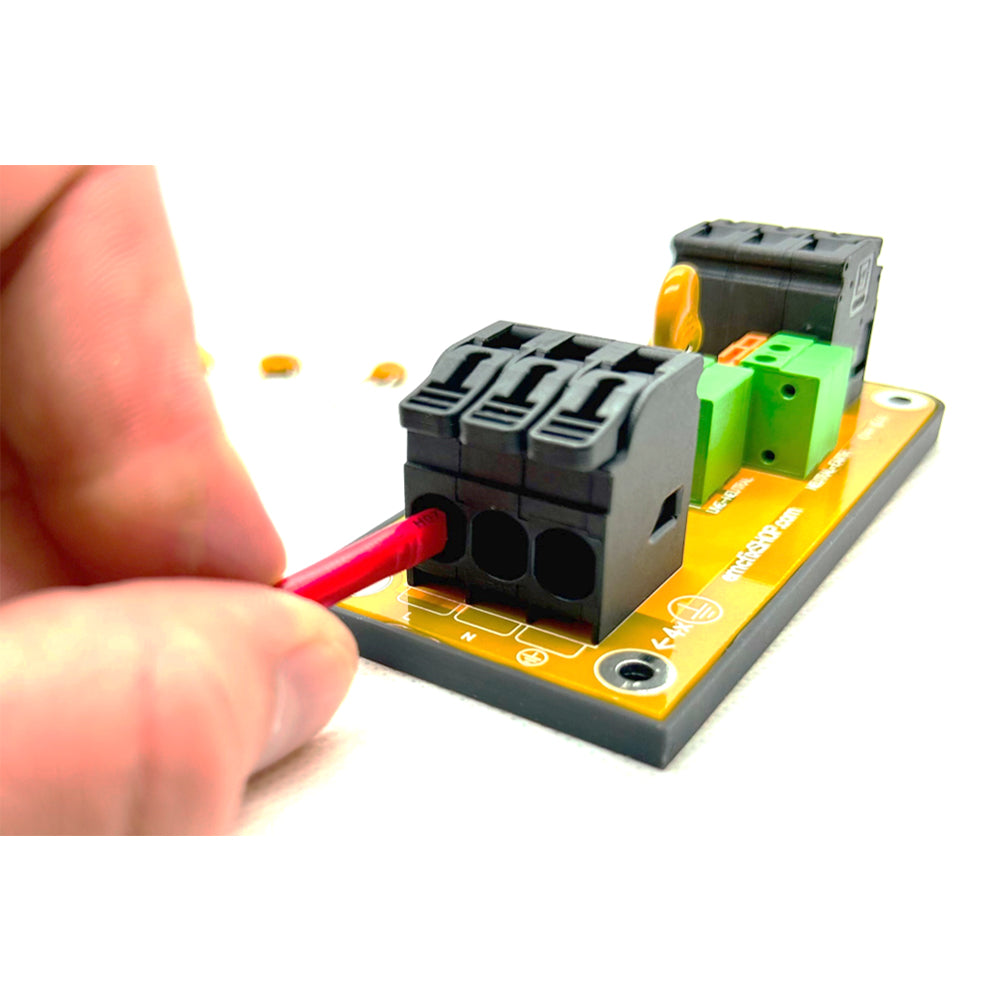

- Screwless supply and component connections

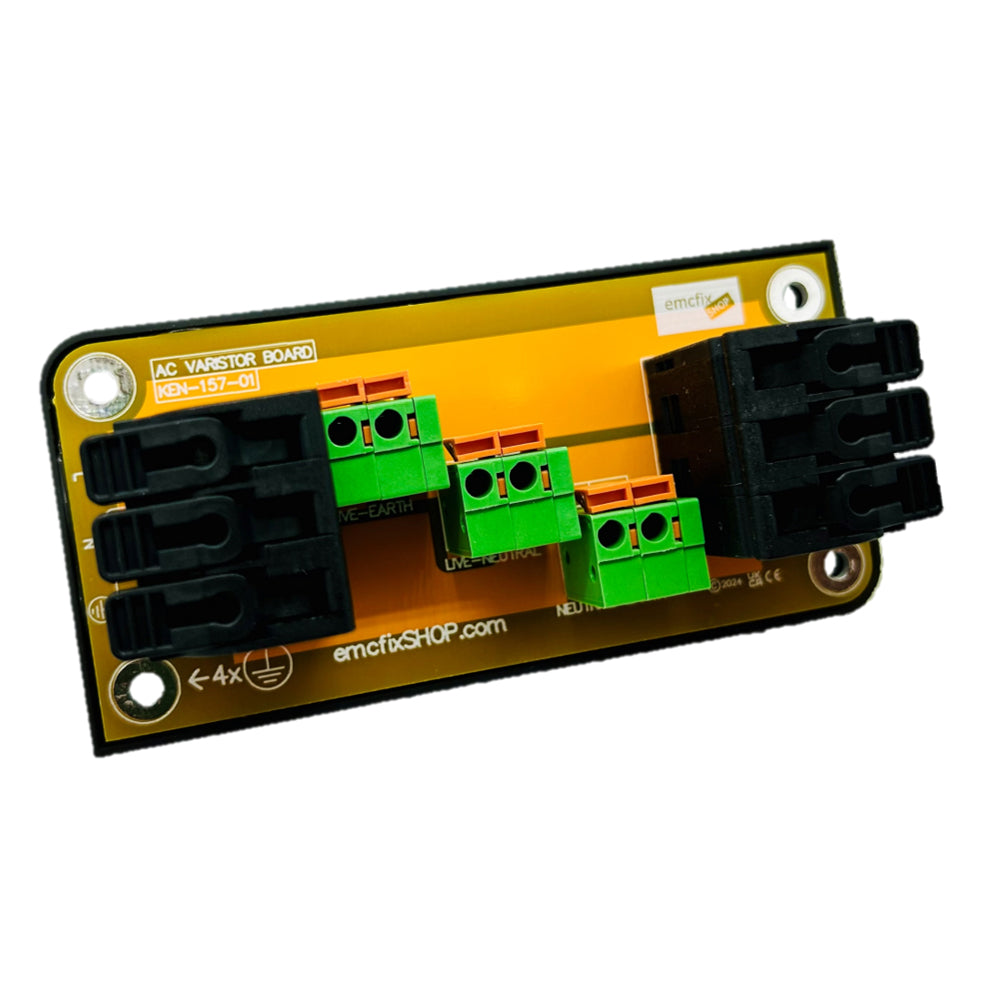

- Board reference KEN-157-01
- Useful for pre-compliance experiments and component comparison
This fixture is for competent engineering use. Its assembly current limit and mains-safety qualification are not established by the available documentation; electrical limits, protection and guarding must be established for the test arrangement before energising it.
Useful for development, repair investigations and pre-compliance work. Discuss your circuit with our engineers if you need help selecting a component.
Questions about this product
How is the component connected on the AC adapter?
How is the component connected on the AC adapter?
The product description identifies component positions across line–neutral, line–earth and neutral–earth. Check the terminal arrangement and choose the correct position for the intended component and circuit.
Can I fit any two-terminal component?
Can I fit any two-terminal component?
The component must be suitable for the connection, voltage and application, including any relevant safety classification. A convenient terminal arrangement does not make an arbitrary component suitable for mains use.
Can the board remain in finished equipment?
Can the board remain in finished equipment?
This is an engineering evaluation fixture. A finished installation needs defined electrical limits, protection, guarding and an assessment of the complete equipment; do not assume it is a qualified permanent mains assembly.
Can you help with larger quantities or product selection?
Can you help with larger quantities or product selection?
Yes. Contact us with the product, quantity and intended application. We can discuss suitability and prepare a quotation for your requirements.
