KEN-137 In-line EMC Filter for 12 V Passive PoE

KEN-137 In-line EMC Filter for 12 V Passive PoE

Precio habitual $54.00 USD
Precio habitual Precio de oferta $54.00 USD
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
Cantidad

Need help choosing or buying larger quantities? Ask an EMC engineer

We aim to reply within 24 hours of receiving your enquiry.

Delivery options and the midday stock-order cutoff

Product details

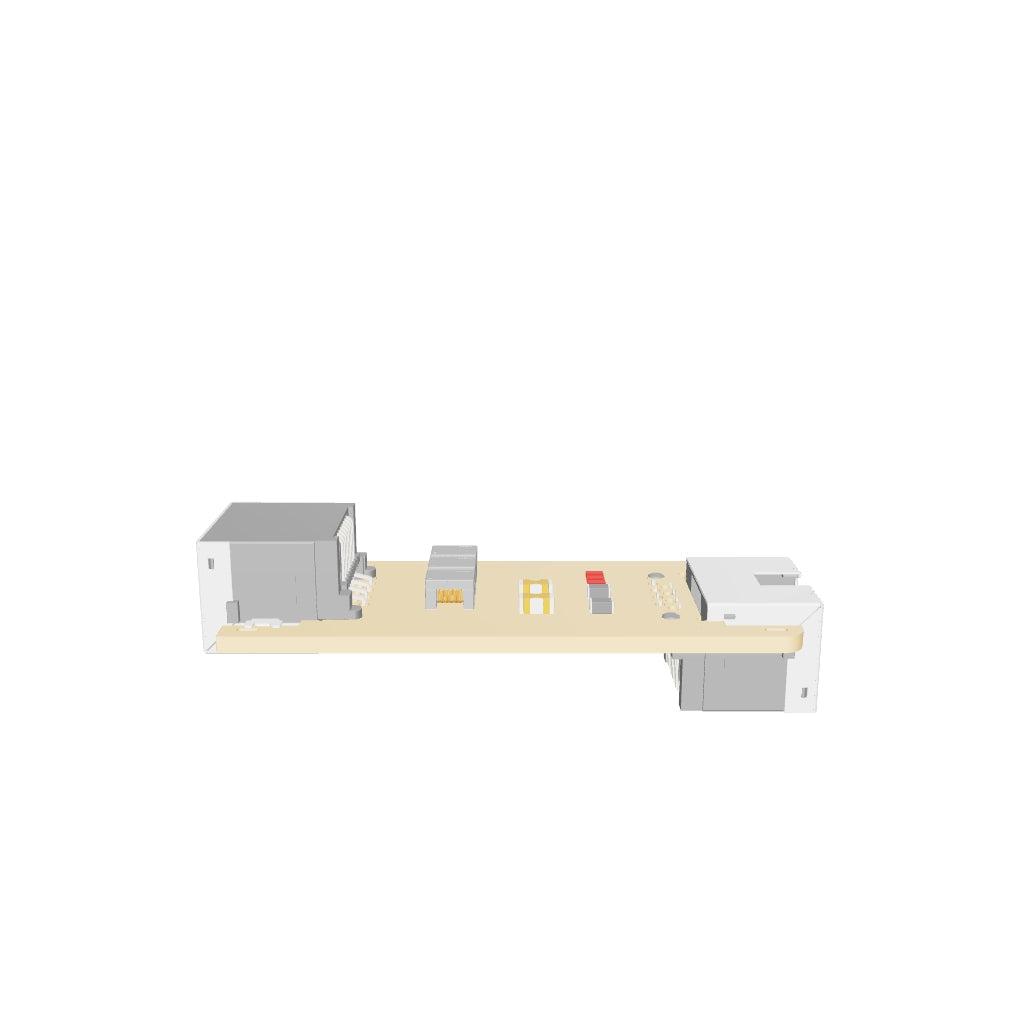

The KEN-137 is an in-line EMC filter for low-voltage passive PoE connections. It filters DC carried on the spare pairs separately from the two Ethernet data pairs.

Recommended DC application

  • Regulated 12 V DC supply; keep supply tolerance and transients below 20 V
  • 100 mA maximum total load current, including start-up and supply current-limit tolerance
  • External current limiting required; the filter does not limit current

This operating profile is based on the circuit and component ratings. Allow for voltage drop through the filter and cable when selecting the powered device.

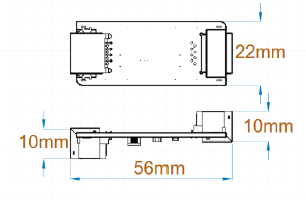

Connections and filtering

  • Two female RJ45 connectors
  • DC on the spare pairs: pins 4 and 5 form one rail; pins 7 and 8 form the other
  • Each DC rail connects to the same pin group at the opposite connector, preserving the applied polarity
  • Common-mode choke, feedthrough-capacitor and ferrite-bead filtering on the DC path
  • Separately filtered data pairs on pins 1–2 and 3–6; no Gigabit support
  • No PoE negotiation, voltage conversion, power injection or DC output socket

PoE type

For low-voltage passive power on the spare pairs. Not for 24 V or 48 V passive PoE, power on the data pairs, or IEEE 802.3af, 802.3at or 802.3bt PoE systems.

Ver todos los detalles

Questions about this product

What type of PoE is this filter for?

Low-voltage passive PoE with DC on the spare pairs: pins 4/5 form one rail and pins 7/8 the other. The recommended DC application is a regulated 12 V supply with a maximum total current of 100 mA, including start-up and current-limit tolerance. Use an externally current-limited supply and keep voltage tolerance and transients below 20 V. This profile is based on the circuit and component ratings.

Can I use it with 24 V passive PoE or an IEEE PoE switch?

No. The spare-pair choke has a 20 V DC operating rating, so 24 V and 48 V passive supplies are outside its rating. This product is for the stated 12 V spare-pair application, not IEEE 802.3af, 802.3at or 802.3bt PoE, or power carried on the data pairs.

Does it negotiate PoE power or regulate the output?

No. It passes and filters power supplied externally, preserving the two spare-pair rails and their polarity. It does not inject power, negotiate PoE, regulate voltage, limit current or provide a separate DC output. The powered device must allow for voltage drop through the filter and cable.

Can you help with larger quantities or product selection?

Yes. Contact us with the product, quantity and intended application. We can discuss suitability and prepare a quotation for your requirements.
